PRODUCT INTRODUCTION
The NQPT31 series guide-rail mounted sockets are suitable for power distribution in cabinet equipment such as power, communication, and control systems. They can be used in conjunction with other modular terminal electrical appliances and are also applicable to indoor and outdoor charging facilities. The product features a simple structure, convenient installation and disassembly, and a long service life. Equipped with a built-in safety door, it can greatly prevent the risk of electric shock.
This product complies with GB/T 2099.1 and IEC 60884-1 standards.
PARAMETERS
 |  |  |  | |
Model | NQPT316 | NQPT310 | NQPT313 | NQPT315 |

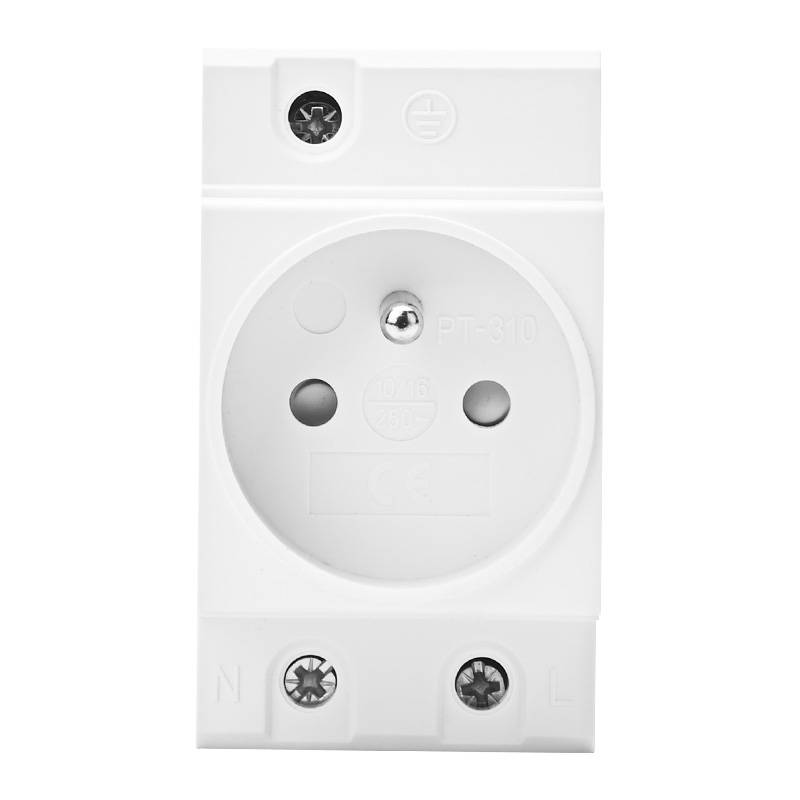

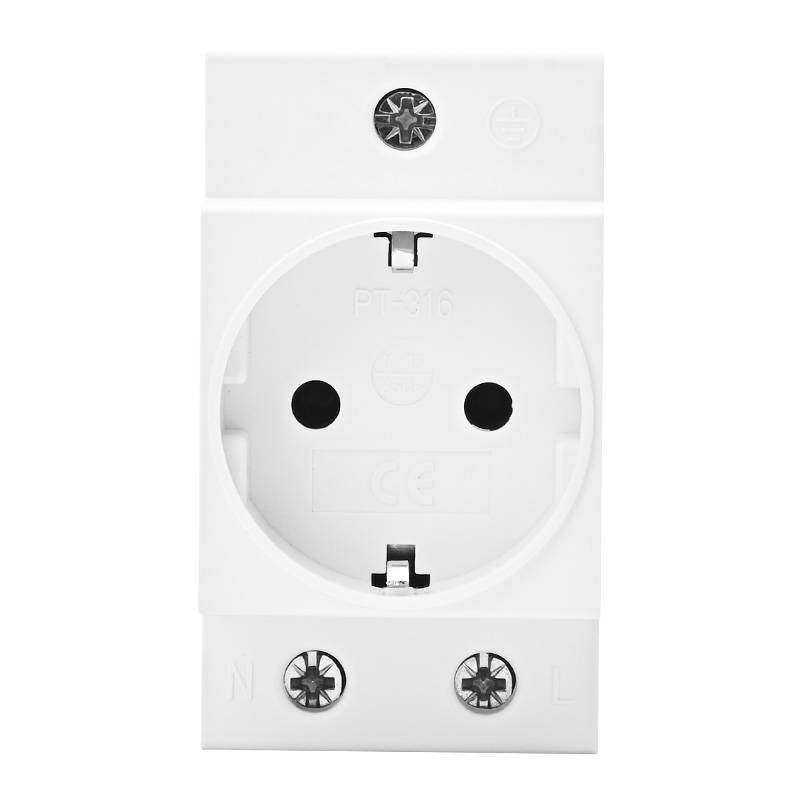

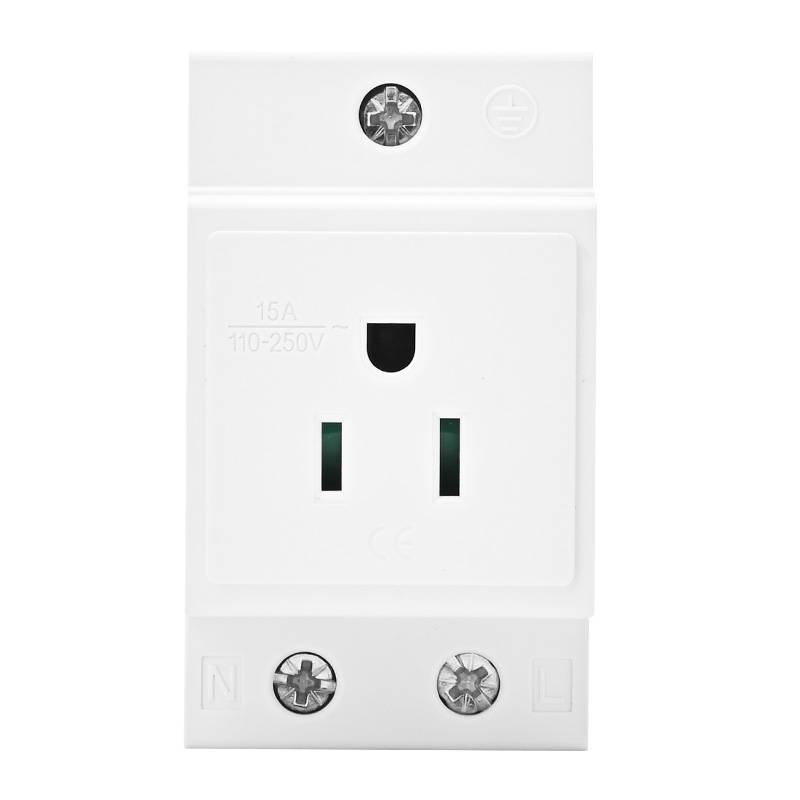

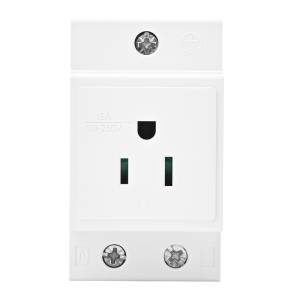

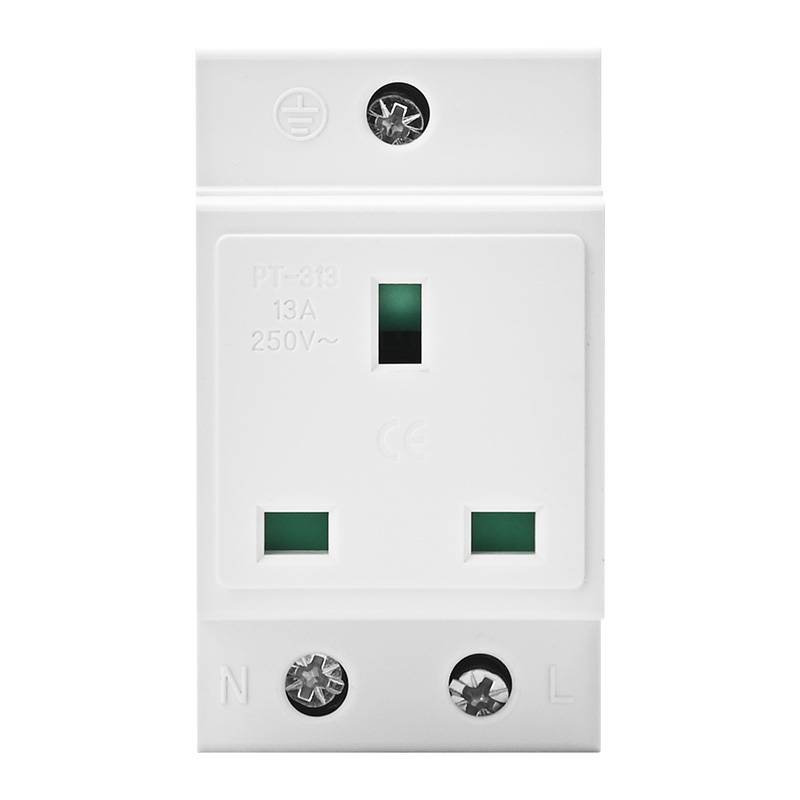

Type | DE | FR | UK | US |
Max Load Current(A) | 16 | 16 | 13 | 15 |
Rated Voltage(V) | 100-250 | |||
Insulation Voltage(V) | 2000 | |||
Installation | Standard DIN rail (35mm width), Panel bracket installation | |||
 |  | |||
Model | NQPT317 | NQPT316-1 | ||

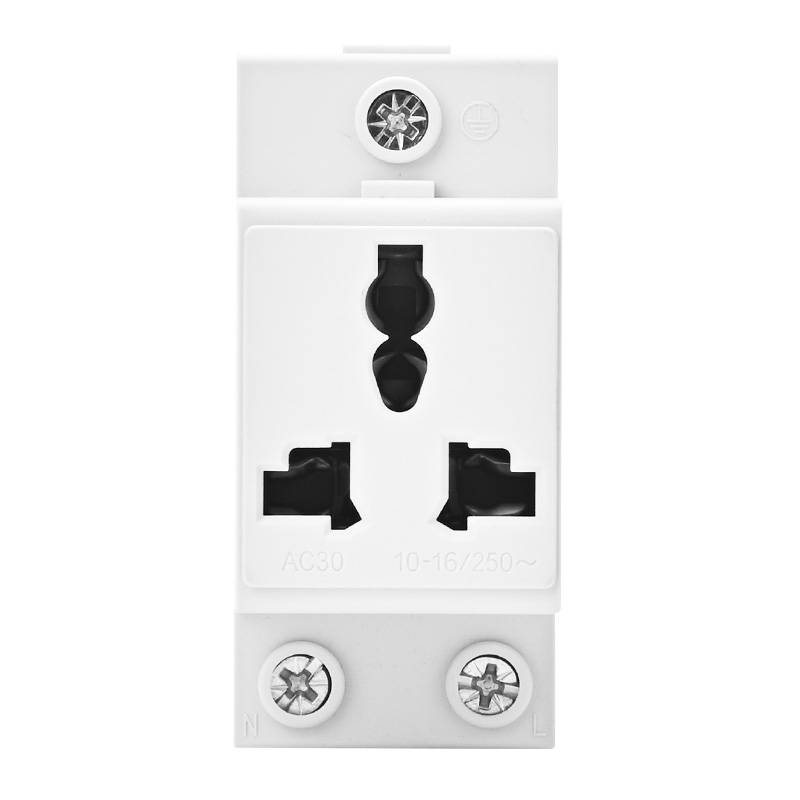

Type | Universal | DE with Light | ||
Max Load Current(A) | 10 | 16 | ||
Rated Voltage(V) | 100-250 | |||
Insulation Voltage(V) | 2000 | |||
Installation | Standard DIN rail (35mm width), Panel bracket installation | |||

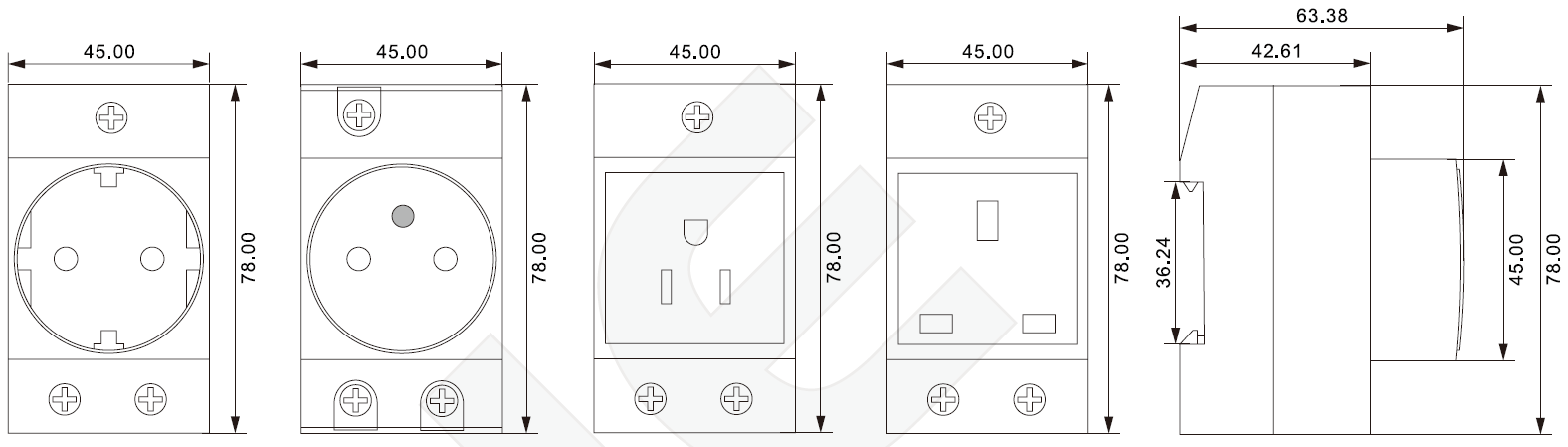

SIZE (UNIT: MM)

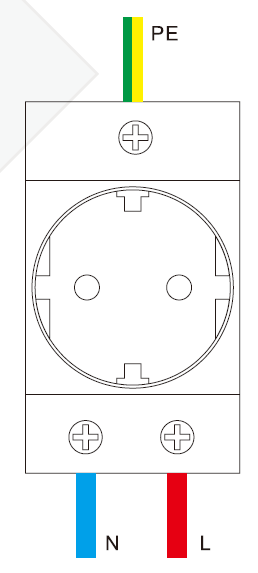

WIRING METHOD

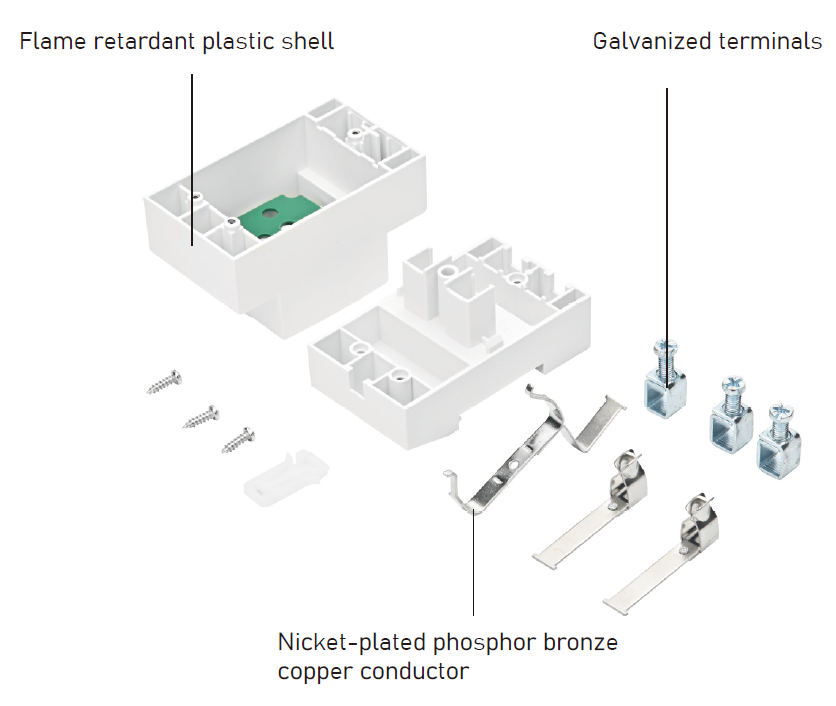

INTERNAL PARTS
PRECAUTIONS AND WARNING
Turn off power at the circuit breaker before installing or servicing the socket to avoid electric shock.
Ensure the outlet’s amperage (e.g., 10A, 15A, 16A) matches the circuit and connected devices; never overload it.
Install socket away from water sources (sinks, bathtubs) to prevent short circuits or electrocution risks.
Regularly check for loose wires, cracked covers, or overheating; replace damaged outlets immediately.
