PRODUCT INTRODUCTION

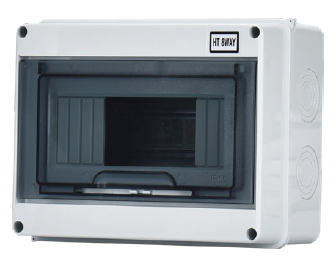

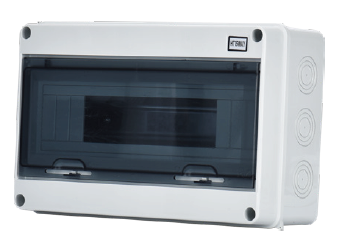

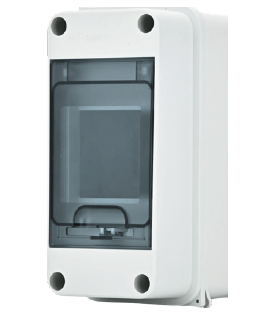

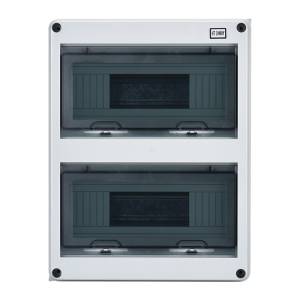

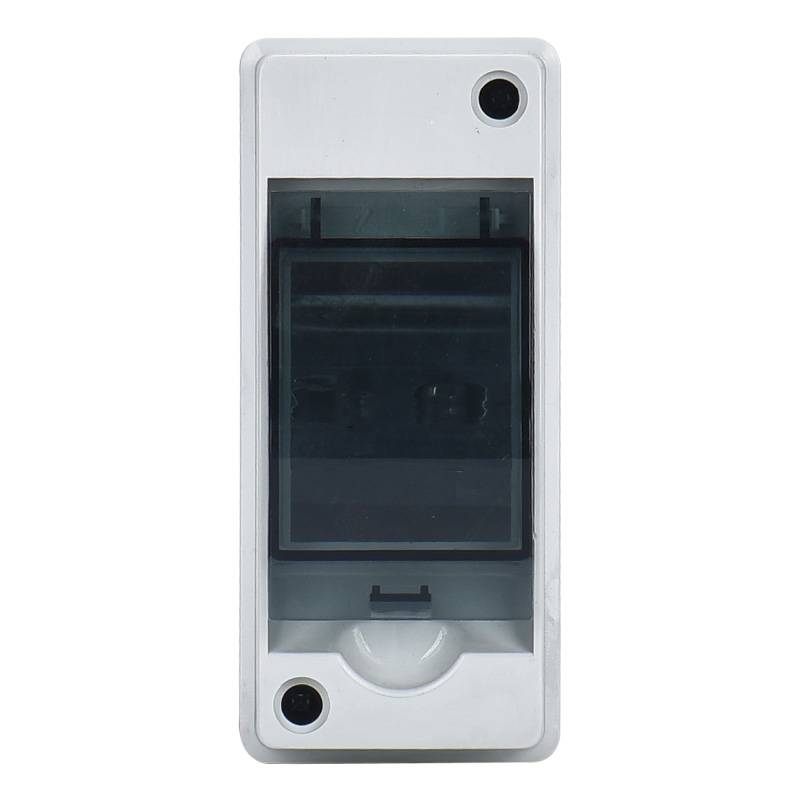

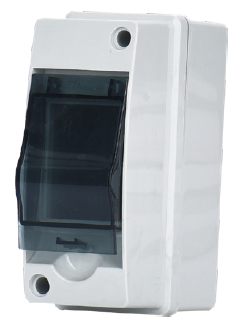

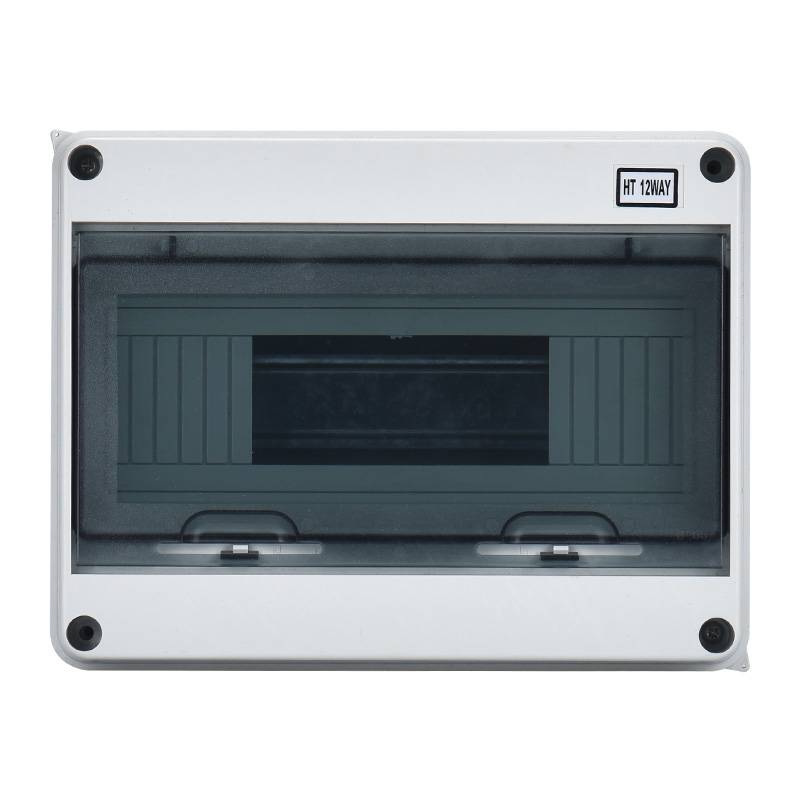

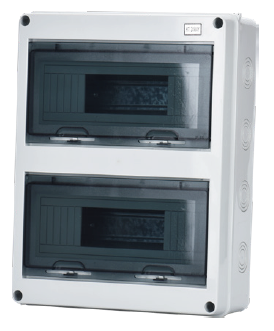

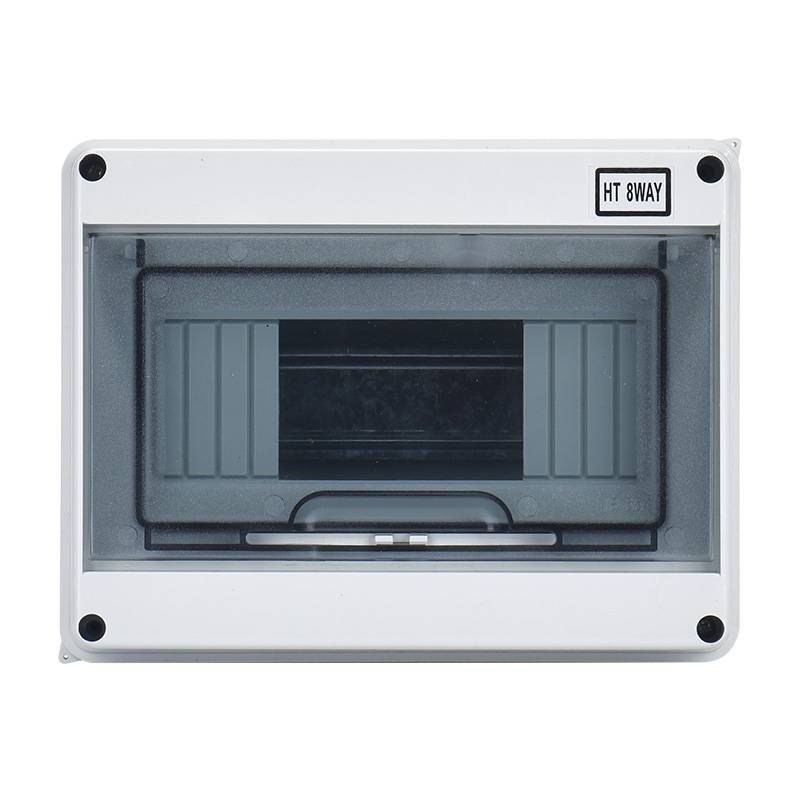

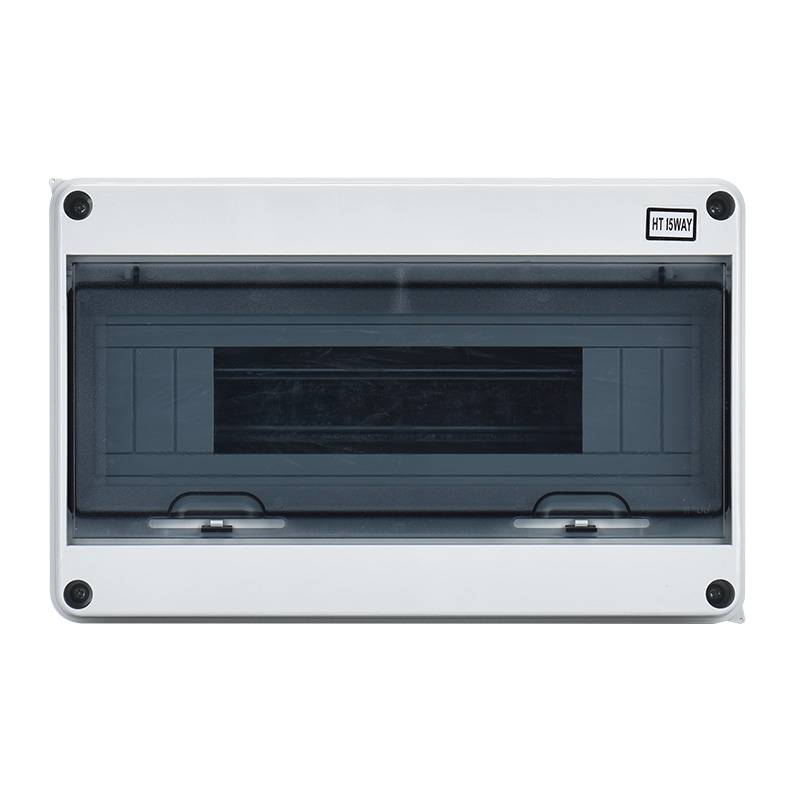

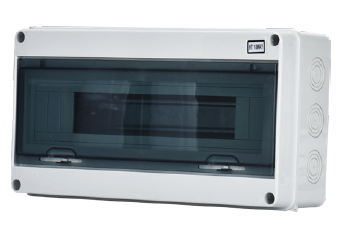

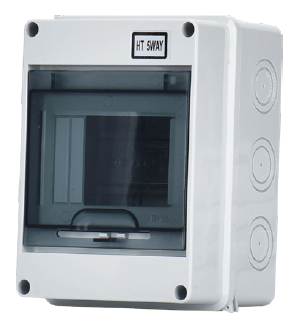

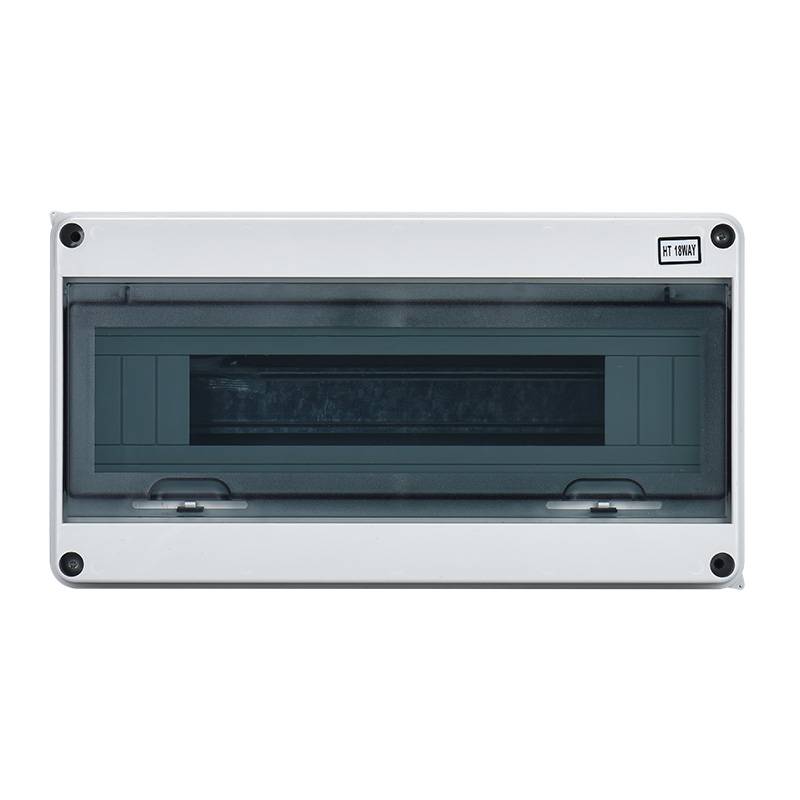

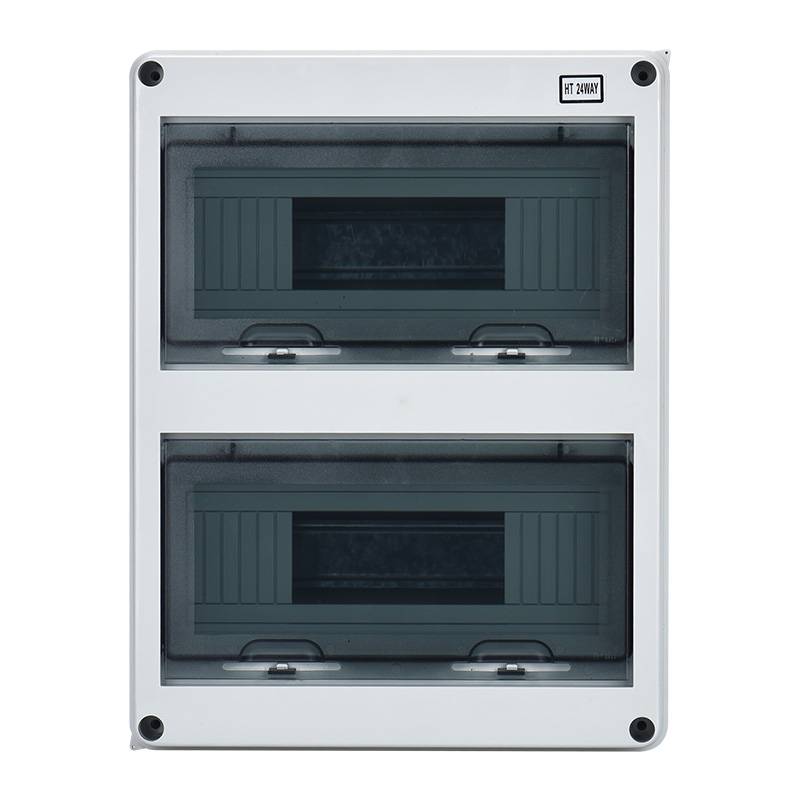

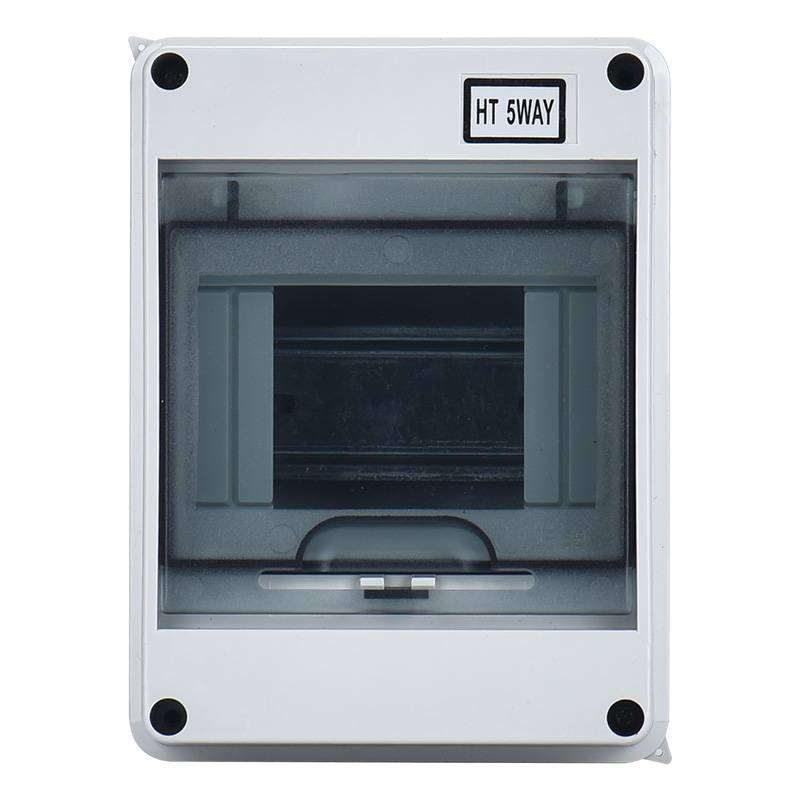

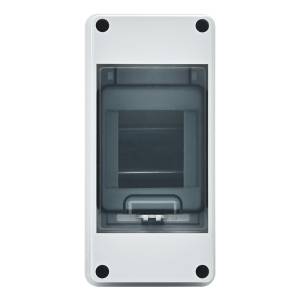

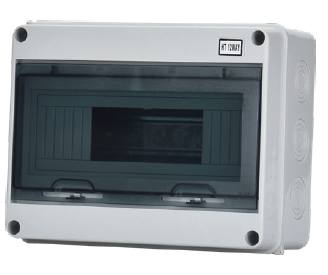

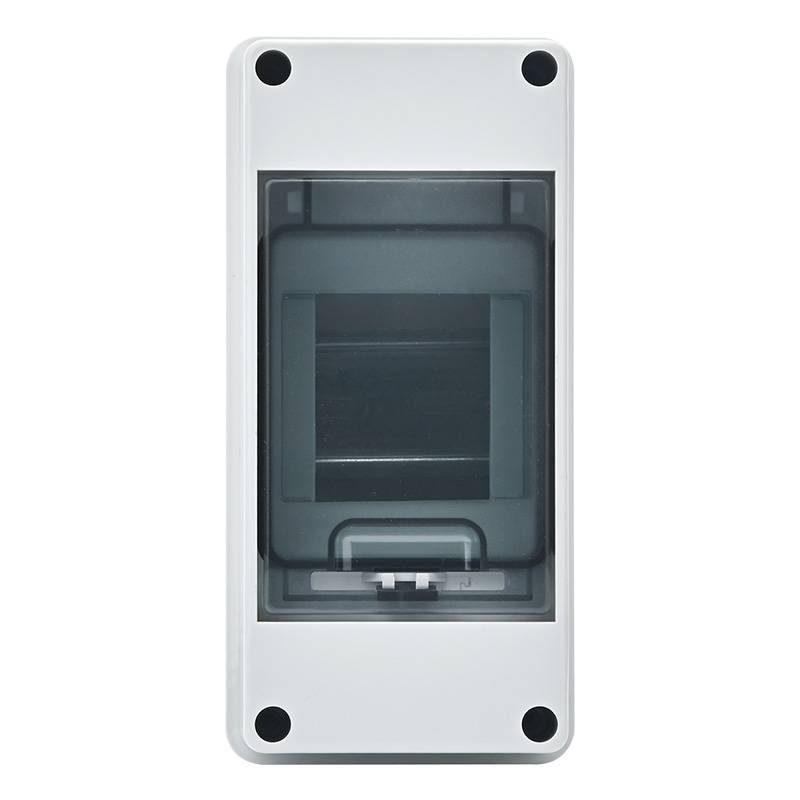

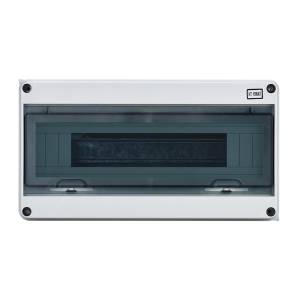

The NQHTBOX waterproof box (waterproof distribution box) series adopts an ABS plastic bottom shell and a PC transparent plastic panel. The product has excellent IP65 waterproof and dustproof performance, making it suitable for outdoor use. The entire product is flame-retardant and can accommodate conductors, switches, contactors, and indicator lights. Internal components can be operated (opened or closed) directly without opening the bottom box. Additionally, copper bars can be added to facilitate the connection of neutral and live wires.
PARAMETERS
Specifications |
|
|
|
|
Specification | 2Way | 3Way | 5Way | 8Way |
Size (W×L×H) | 55×95×120mm | 75×95×155mm | 120×95×160mm | 200×110×200mm |
Protection level | IP65 | IP65 | IP65 | IP65 |
Installation rail | Build-in | Build-in | Build-in | Build-in |
Equipable accessories | / | / | Copper Bar×1 | Copper Bar×1 |
Tolerance voltage | AC690V/DC1200V | AC690V/DC1200V | AC690V/DC1200V | AC690V/DC1200V |
Specifications |
|
|
|
|
Specification | 12Way | 15Way | 18Way | 24Way |
Size (W×L×H) | 255×110×200mm | 310×110×200mm | 365×110×200mm | 275×110×335mm |
Protection level | IP65 | IP65 | IP65 | IP65 |
Installation rail | Build-in | Build-in | Build-in | Build-in |
Equipable accessories | Copper Bar×1 | Copper Bar×1 | Copper Bar×1 | Copper Bar×2 |
Tolerance voltage | AC690V/DC1200V | AC690V/DC1200V | AC690V/DC1200V | AC690V/DC1200V |

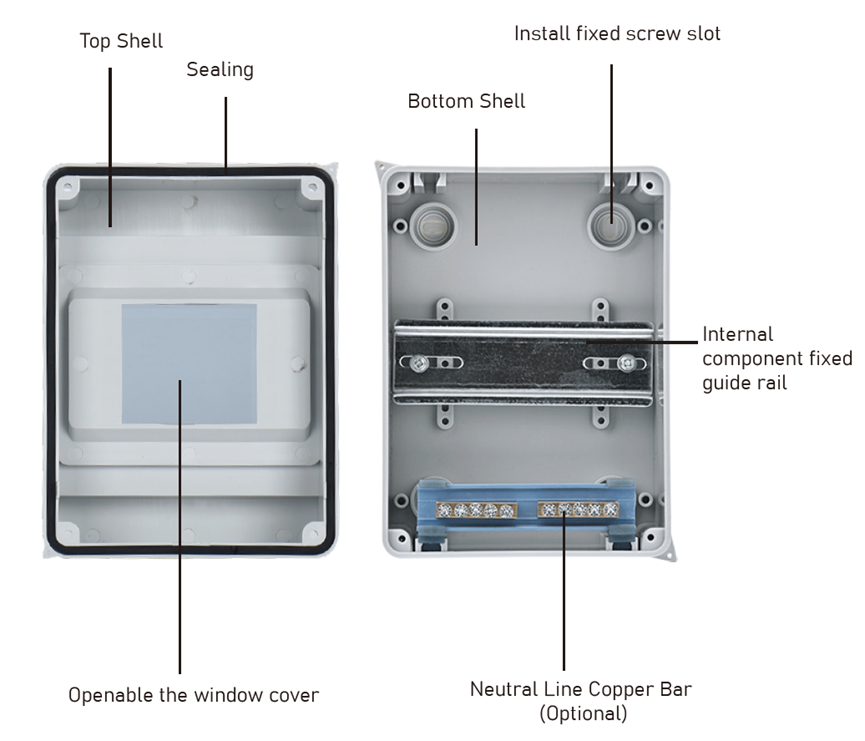

INTERNAL STRUCTURE

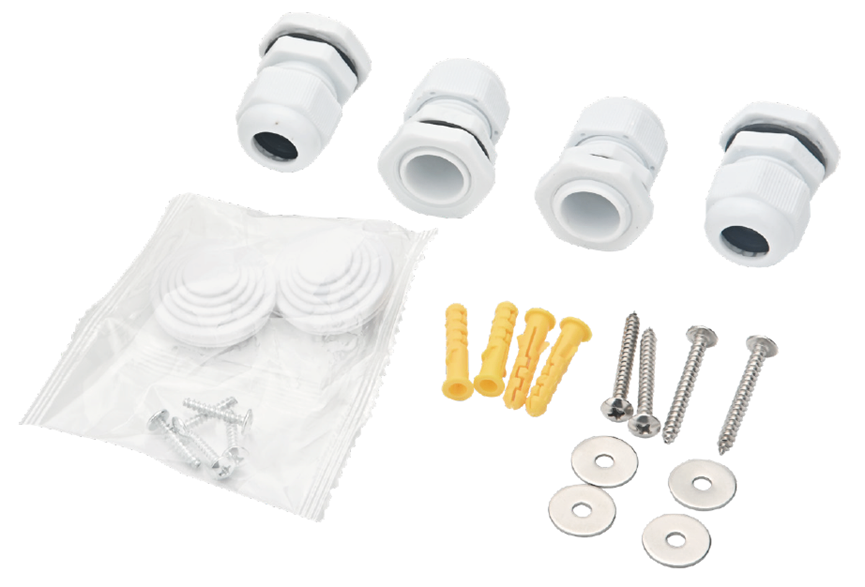

FITTINGS
Note: The number of accessories or gifts varies with distribution boxes of different ways.
