1. Specialized for DC Applications
Tailored for DC Circuits: The DZ47-63(B)/125(B)is specifically designed for direct current (DC) systems, making it ideal for a wide range of applications such as electric vehicles, motorcycles, lighting circuits, switching power supplies, UPS power supplies, and security monitoring circuits.
Wide Voltage Range: Suitable for unipolar rated voltages from DC 12V to 120V, ensuring compatibility with various DC systems.
2. High Current Handling Capability
Rated Current up to 63A: This circuit breaker can handle rated currents up to 150A, providing robust protection for high-current DC circuits. It ensures reliable operation even under heavy load conditions.
3. Dual Protection Features
Overload Protection: Provides reliable protection against overloads, preventing damage to electrical components and ensuring the safety and longevity of connected devices.
Short-Circuit Protection: Instantly trips in the event of a short circuit, minimizing the risk of electrical fires and protecting the entire electrical system from damage.
4. Versatile Usage
Infrequent On-Off Operations: Suitable for infrequent switching of electrical devices under normal conditions, making it a versatile choice for both protection and control functions in various DC applications.
5. Compliance with International Standards
GB10963.2 and IEC60947-2 Compliance: This product meets the stringent requirements of GB10963.2 and IEC60947-2 standards, ensuring it adheres to the highest safety and performance criteria. This compliance guarantees reliability and compatibility with modern electrical systems.
PRODUCT INTRODUCTION

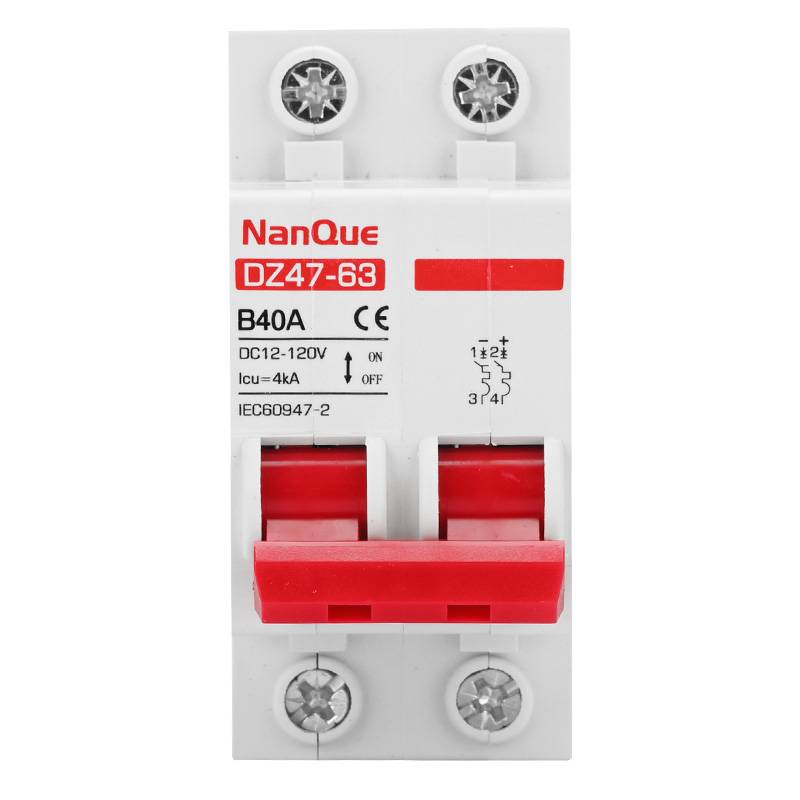

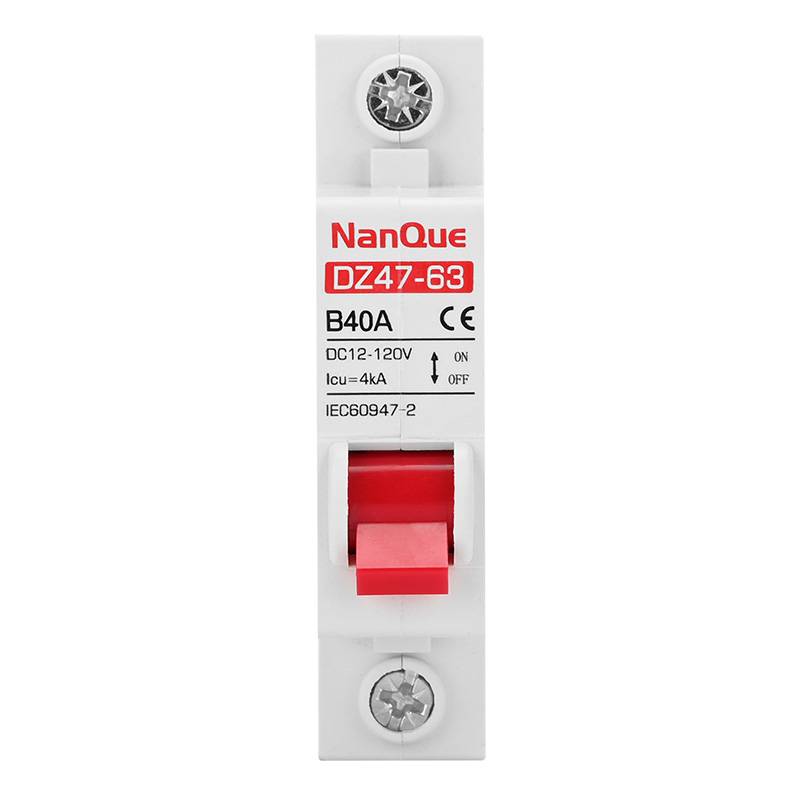

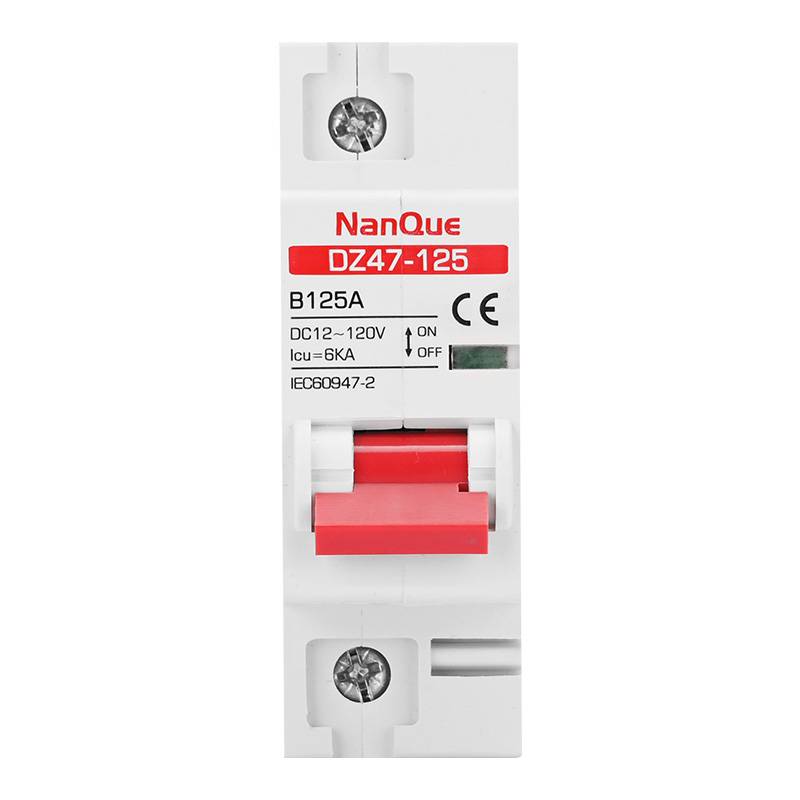

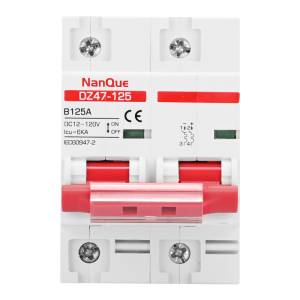

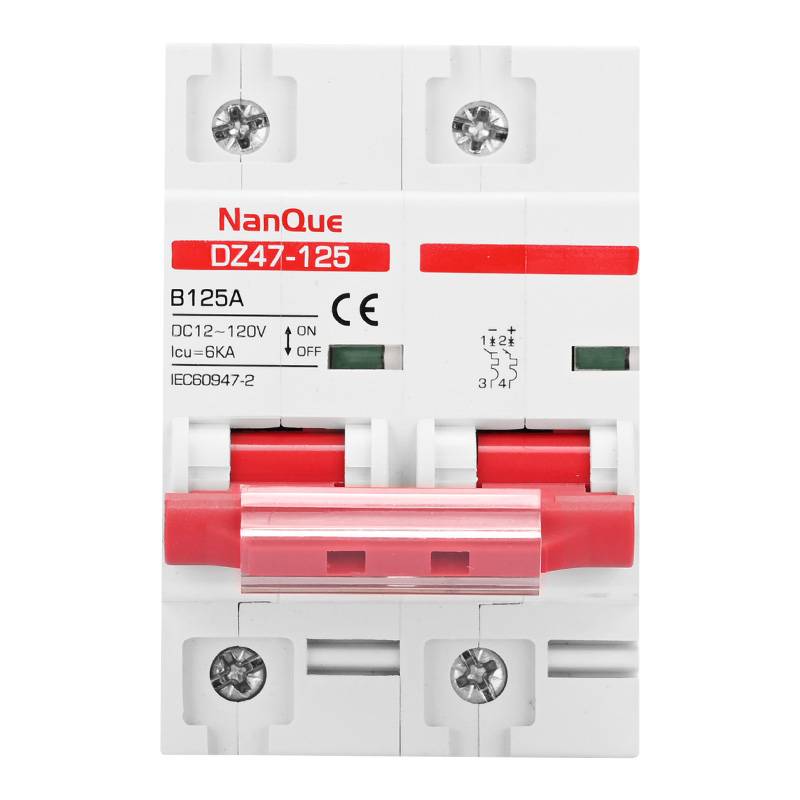

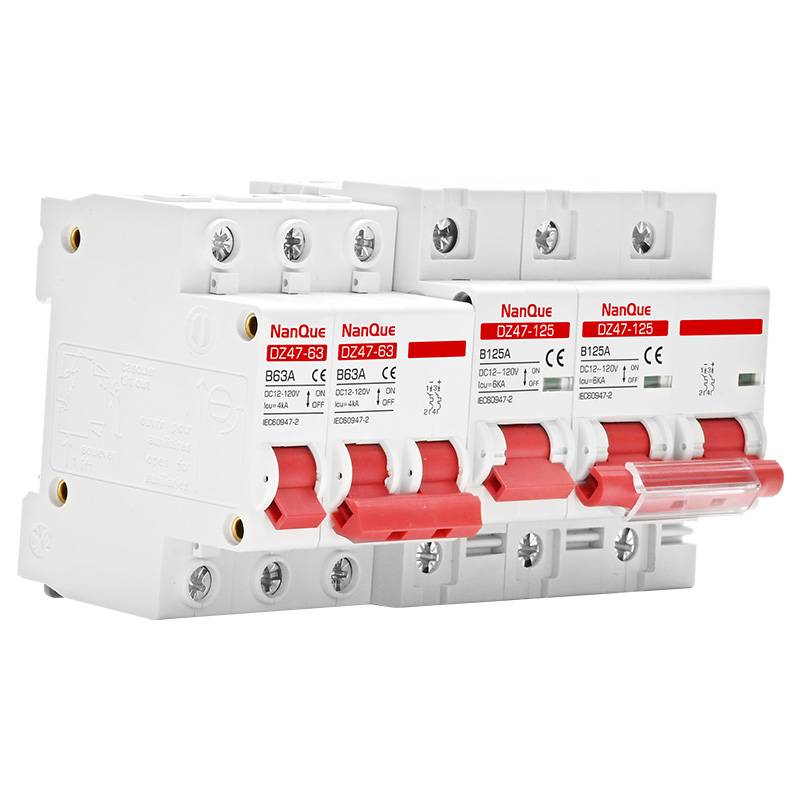

DZ47-63 (Type B) is a special circuit breaker for storage battery circuits. It is specially used in scenarios such as electric vehicles, motorcycles, lighting circuits, switching power supplies, UPS power supplies, and security monitoring circuits. For lines with a single-pole rated DC voltage of 12V-120V and a rated current of up to 63A, it provides overload and short-circuit protection. Meanwhile, it can also be used as a switching device that does not frequently switch on and off under normal conditions. This product complies with the GB10963.2 and IEC60947-2 standards.
PARAMETERS
Product Model | DZ47-63B | DZ47-125B |
Electrical Characteristics | ||
Pole Number | Non-polar 1P, 2P | |
Rated Current Ie (A) (Support Customization of Other Currents) | 1, 2, 3, 4, 5 (Customized), 6, 10, 16, 20, 25, 32, 40, 50, 63 | 80, 100, 125, 150 |
Rated Voltage Ue (V) DC | 12-120 | |
Rated Insulation Voltage Ui (V) DC | 600 | |
Rated Withstand Impulse Voltage Uimp (kV) | 4 | |
Rated Circuit-breaker Breaking Capacity Icu (kA) | 4 | |
Trip Type | Thermomagnetic Trip | |
Trip Curve | B Curve (3In - 5In) | |
Pollution Degree | 2 | |
Protection Functions | Overload Protection, Short Circuit Protection | |
Isolation Function | Available | |
Mechanical Characteristics | ||
Mechanical Service Life (Times) | 10000 | |
Electrical Service Life (Times) | 10000 | |
Reference Ambient Temperature | 30°C | |
Operating Ambient Temperature | -35°C - +70°C | |
Storage Temperature | -40°C - +85°C | |
Installation Characteristics | ||
Terminal | Tunnel-type Terminal | |
Maximum Wiring Capacity | 2.5N.m | 3.5N.m |
Maximum Limit Wiring Capacity | 25mm² | 50mm² |
Installation | Standard DIN rail (35mm width), Panel bracket installation | |
Optional Accessory | MX (shunt release), OF (auxiliary contact), SD (alarm contact) | |

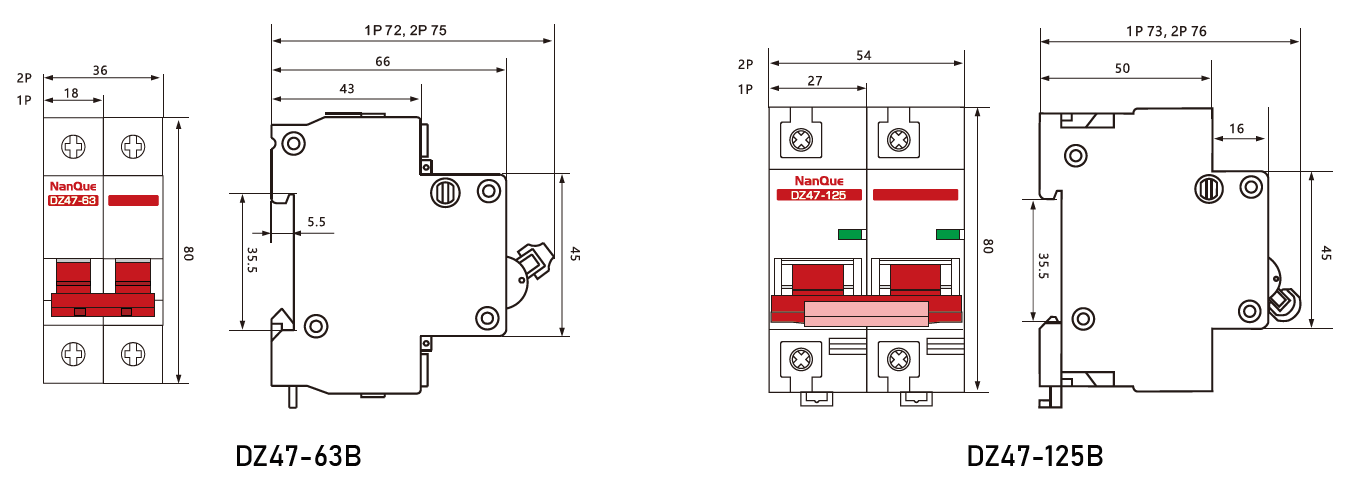

SIZE (UNIT: MM)

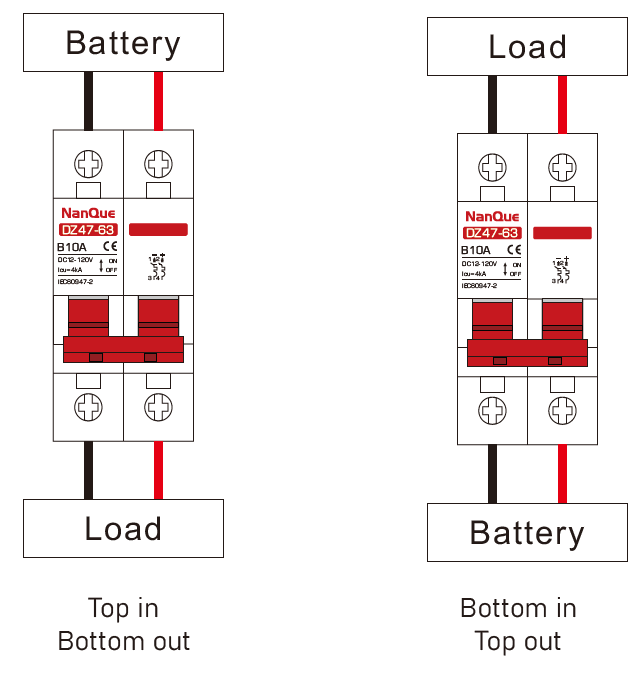

WIRING METHOD
CONNECTING CABLE
Model | Current | Recommended Cable (mm²) | Maximum Wiring Capacity (mm²) |
DZ47Z-63X | 1-6A | 1 | 25 |
10A | 1.5 | ||
16-20A | 2.5 | ||
25A | 4 | ||
32A | 6 | ||
40-50A | 10 | ||
63A | 16 | ||
DZ47Z-125 | 80-100A | 25 | 50 |
125A | 35 | ||
150A | 50 |
PRECAUTIONS AND WARNING
Ensure the circuit breaker is properly rated for the current, voltage, and frequency of the circuit it will control to prevent overloading and damage.
Always wear appropriate personal protective equipment (PPE) such as insulated gloves, safety glasses, and arc-flash clothing when operating or maintaining the circuit breaker.
Verify that the circuit is de-energized using a suitable voltage tester before performing any maintenance or inspection on the circuit breaker.
Avoid rapid or frequent switching of the circuit breaker, as this can cause excessive wear on internal components and reduce its lifespan.
Follow the manufacturer’s operating instructions and lockout/tagout procedures when isolating the circuit breaker to prevent accidental energization and ensure personal safety.
