Wide Voltage Range - Supports DC250V to DC1000V applications, ideal for solar systems, EV charging, and industrial DC power distribution.
High Current Protection - 1A to 150A rating with precise overload and short circuit protection for enhanced electrical safety.
Multi-Pole Options - Available in 1P, 2P, 3P, and 4P configurations for flexible DC circuit protection solutions.
Reliable C Curve - Ensures optimal tripping performance for moderate inrush currents in DC applications.
Robust & Compact - Durable design for harsh environments, ensuring long-lasting protection in renewable energy & industrial systems.
PRODUCT INTRODUCTION

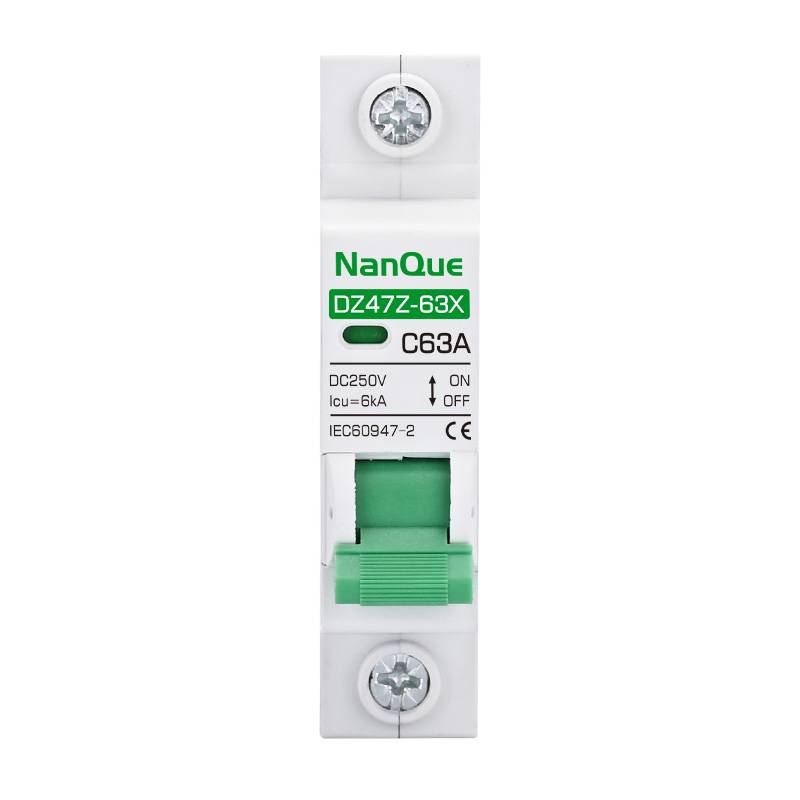

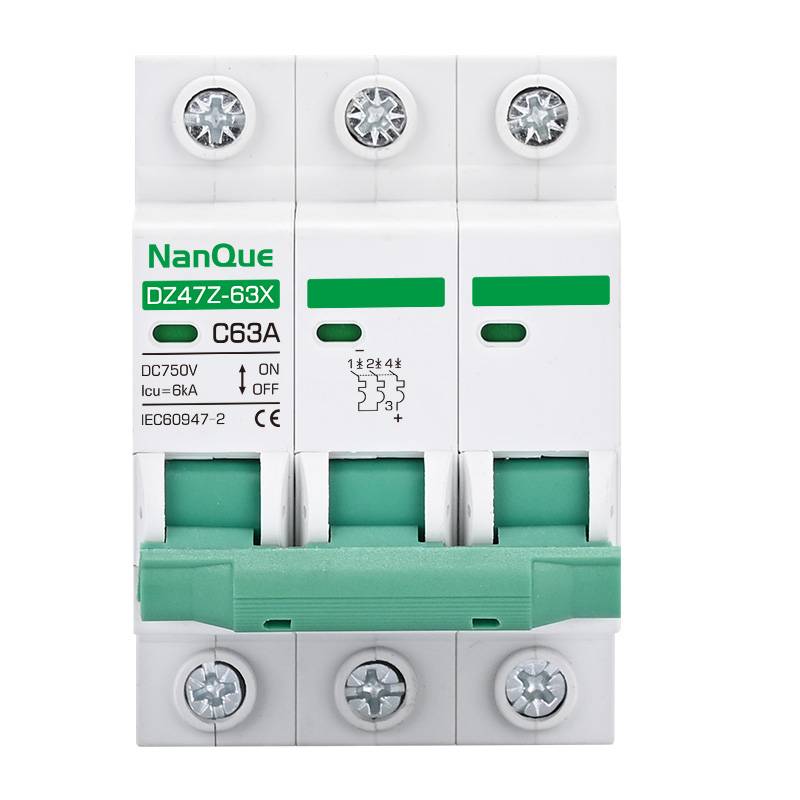

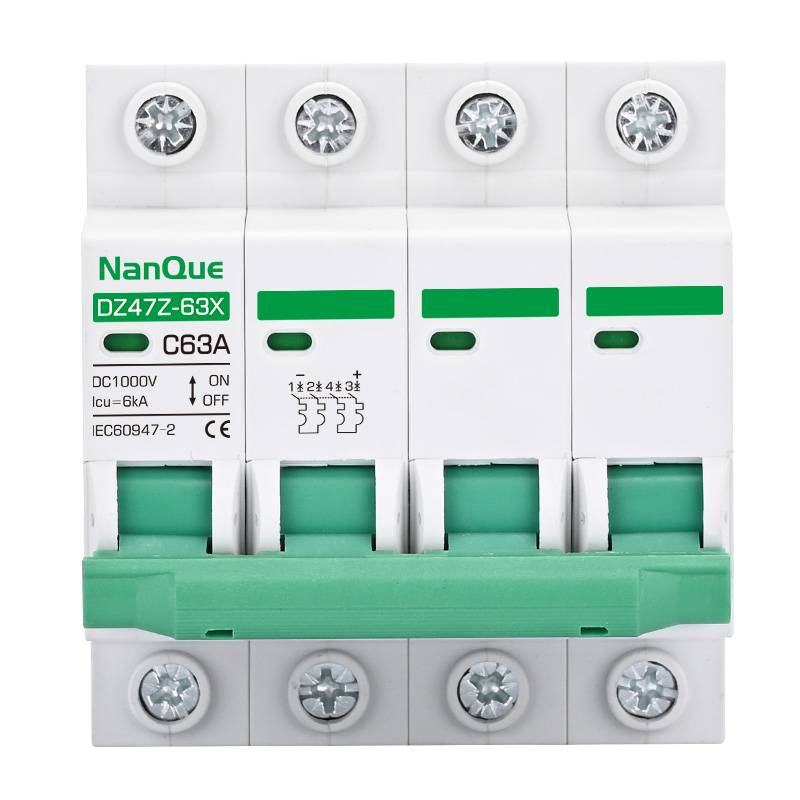

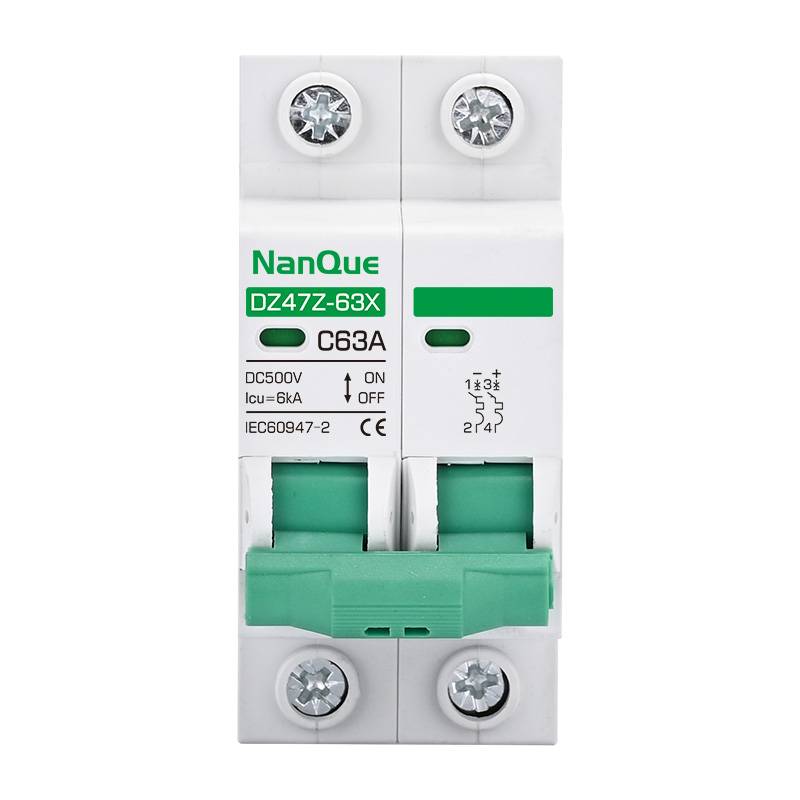

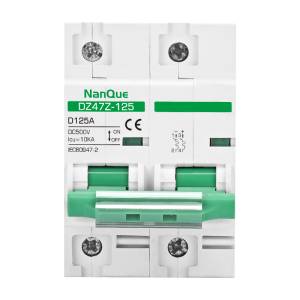

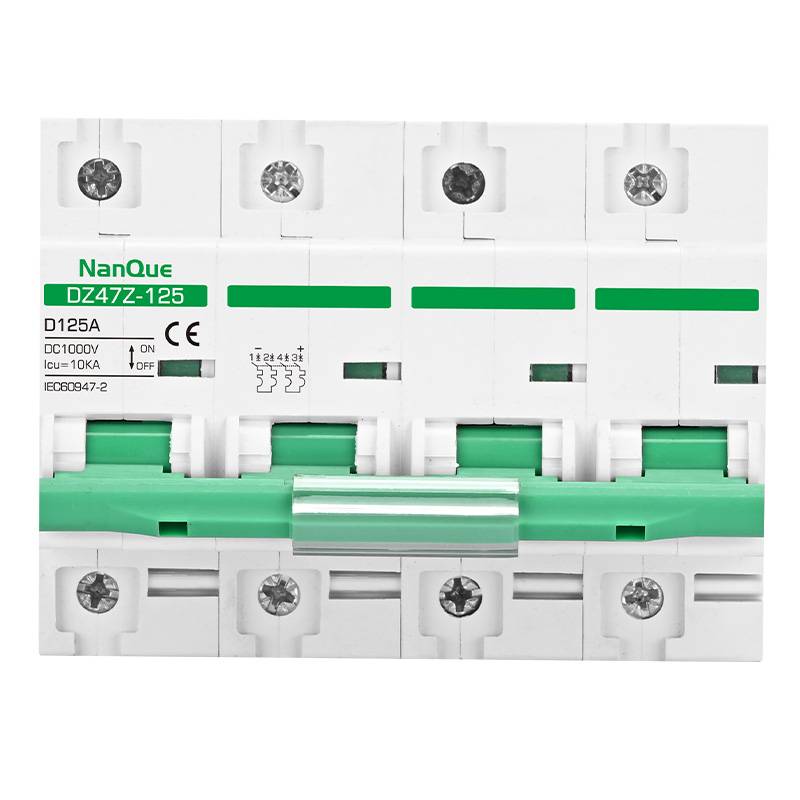

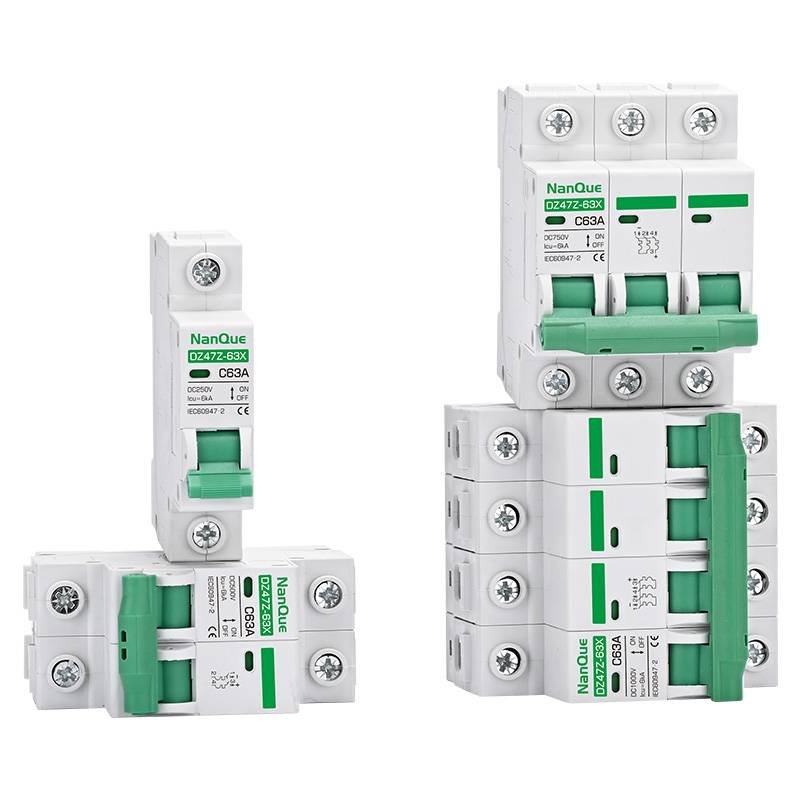

The DZ47Z-63X DC miniature circuit breaker series is mainly used in DC lines with a rated voltage of up to 1000V and a rated working current of up to 63A. It provides overload and short-circuit protection for DC lines and enables infrequent conversion of lines.
The circuit breaker consists of a plastic casing, an operating mechanism, a contact arc extinguishing system, and a tripping mechanism. Its shell is made of high flame-retardant, high-strength special plastic, which offers strong impact resistance and light weight.
This product complies with the GB10963.2 and IEC60947-2 standards.
PARAMETERS

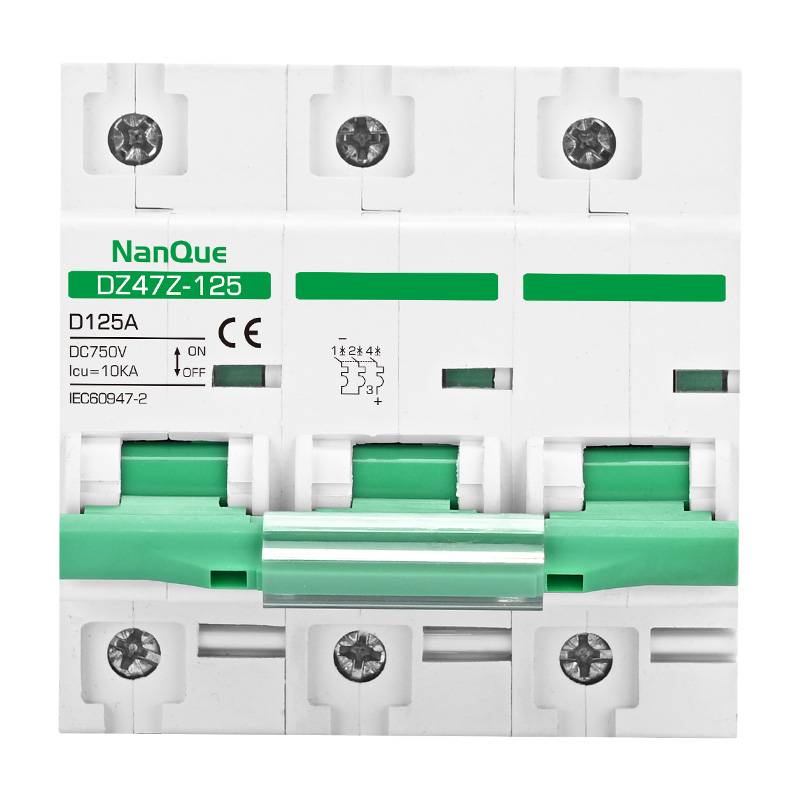

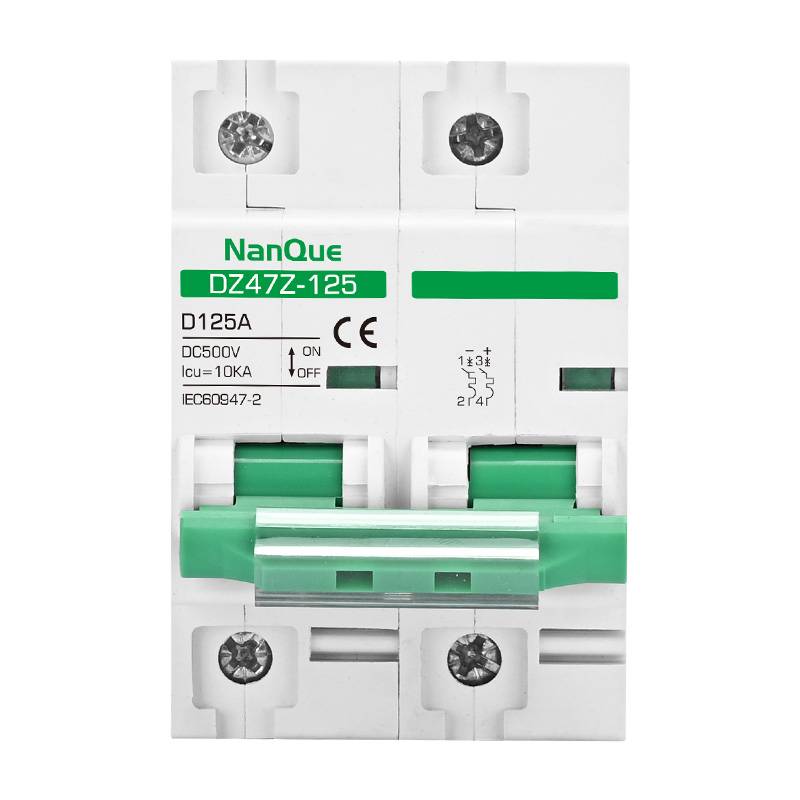

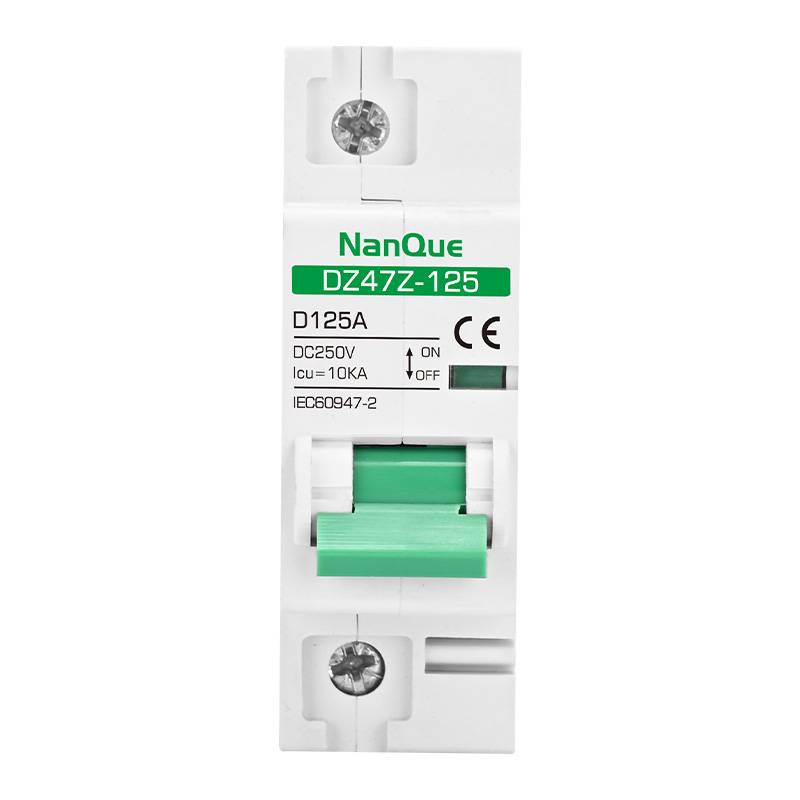

Product Model | DZ47Z-63X | DZ47Z-125 |
Electrical Characteristics | ||
Pole Number | Non-polar 1P, 2P, 3P, 4P | |
Rated Current Ie (A) (Support Customization of Other Currents) | 6, 10, 16, 20, 25, 32, 40, 50, 63 | 80, 100, 125, 150 |
Rated Voltage Ue (V) DC | 250-1000 | |
Rated Insulation Voltage Ui (V) DC | 1200 | |
Rated Withstand Impulse Voltage Uimp (kV) | 6 | |
Rated Circuit-breaker Breaking Capacity Icu (kA) | 6 | |
Trip Type | Thermomagnetic Trip | |
Trip Curve | C Curve (5In - 10In) | D Curve (10In - 15In) |
Pollution Degree | 2 | |
Protection Functions | Overload Protection, Short Circuit Protection | |
Isolation Function | Available | |
Mechanical Characteristics | ||
Mechanical Service Life (Times) | 10000 | |
Electrical Service Life (Times) | 10000 | |
Reference Ambient Temperature | 30°C | |
Operating Ambient Temperature | -35°C - +70°C | |
Storage Temperature | -40°C - +85°C | |
Installation Characteristics | ||
Terminal | Tunnel-type Terminal | |
Maximum Wiring Capacity | 2.5N.m, 3.5N.m | |
Maximum Limit Wiring Capacity | 25mm², 50mm² | |
Installation | Standard DIN rail (35mm width), Panel bracket installation | |
Optional Accessory | MX (shunt release), OF (auxiliary contact), SD (alarm contact) | |

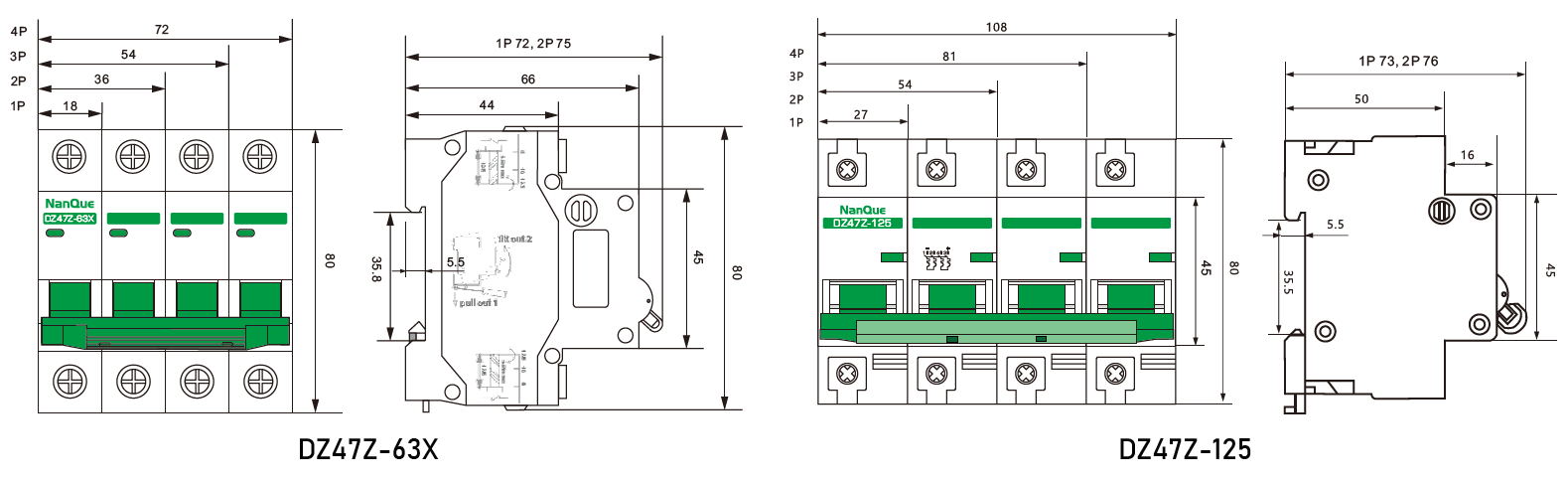

SIZE (UNIT: MM)

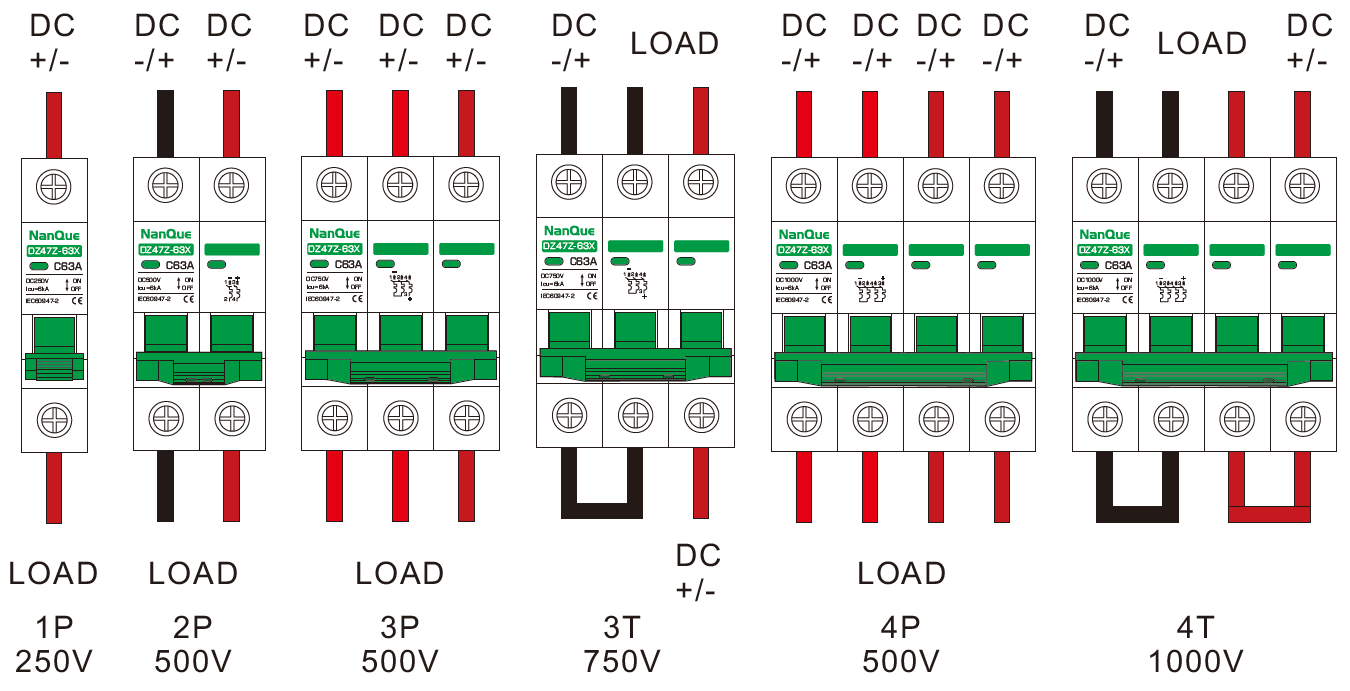

WIRING METHOD
CONNECTING CABLE
Model | Current | Recommended Cable (mm²) | Maximum Wiring Capacity (mm²) |
DZ47Z-63X | 1-6A | 1 | 25 |
10A | 1.5 | ||
16-20A | 2.5 | ||
25A | 4 | ||
32A | 6 | ||
40-50A | 10 | ||
63A | 16 | ||
DZ47Z-125 | 80-100A | 25 | 50 |
125A | 35 | ||
150A | 50 |
PRECAUTIONS AND WARNING
1, Ensure the circuit breaker is properly rated for the current, voltage, and frequency of the circuit it will control to prevent overloading and damage.
2, Always wear appropriate personal protective equipment (PPE) such as insulated gloves, safety glasses, and arc-flash clothing when operating or maintaining the circuit breaker.
3, Verify that the circuit is de-energized using a suitable voltage tester before performing any maintenance or inspection on the circuit breaker.
4, Avoid rapid or frequent switching of the circuit breaker, as this can cause excessive wear on internal components and reduce its lifespan.
5, Follow the manufacturer’s operating instructions and lockout/tagout procedures when isolating the circuit breaker to prevent accidental energization and ensure personal safety.
